0402560101 direct FK5 native ellipse RA/Dec QA

范围守则 / Scope guard

仅限空间几何 QA。 本页不包含光谱或物理分析；审批状态为 视觉审批待确认。

Scope: geometry/spatial QA only. The page carries no spectral or physical analysis; status is VISUAL APPROVAL PENDING.

NO SAS 调用；不生成新数据产品。
no spectrum，no response。
no QPB/RMF/ARF，no fit。
no physical conclusion。
直接 FK5 region 输入由 native Mode-C internal conversion 处理。
no detector-plane clipping；no DETX/DETY/polygon path。

Direct FK5 region input uses native Mode-C internal conversion. There is no detector-plane clipping and no DETX/DETY/polygon path in this approval artefact.

精确几何 / Exact geometry

中心为 RA=10.68479 deg, Dec=41.26907 deg；轴比 q=0.280；位置角 PA=37.7° E of N；DS9 angle=127.7°。五个 annuli 为 60–64 arcmin、64–68 arcmin、68–72 arcmin、72–76 arcmin、76–80 arcmin；坐标系为 FK5/J2000。

Centre 10.68479,41.26907 deg; q=0.280; PA=37.7° E of N; DS9 angle=127.7°; five annuli 60–64, 64–68, 68–72, 72–76, and 76–80 arcmin; frame FK5/J2000.

10.68479RA deg

41.26907Dec deg

q=0.280minor/major

127.7°DS9 angle

真实 RA/Dec QA 图 / Real RA/Dec QA figures

下方直接使用已批准输入 PNG，不是占位图。每张图为 MOS1/MOS2 camera-native RA/Dec panels；只显示与影像重叠的部分。

The figures below are the real approved QA PNG artefacts, not placeholders. They show MOS1/MOS2 camera-native RA/Dec panels, with only image-overlapping parts visible.

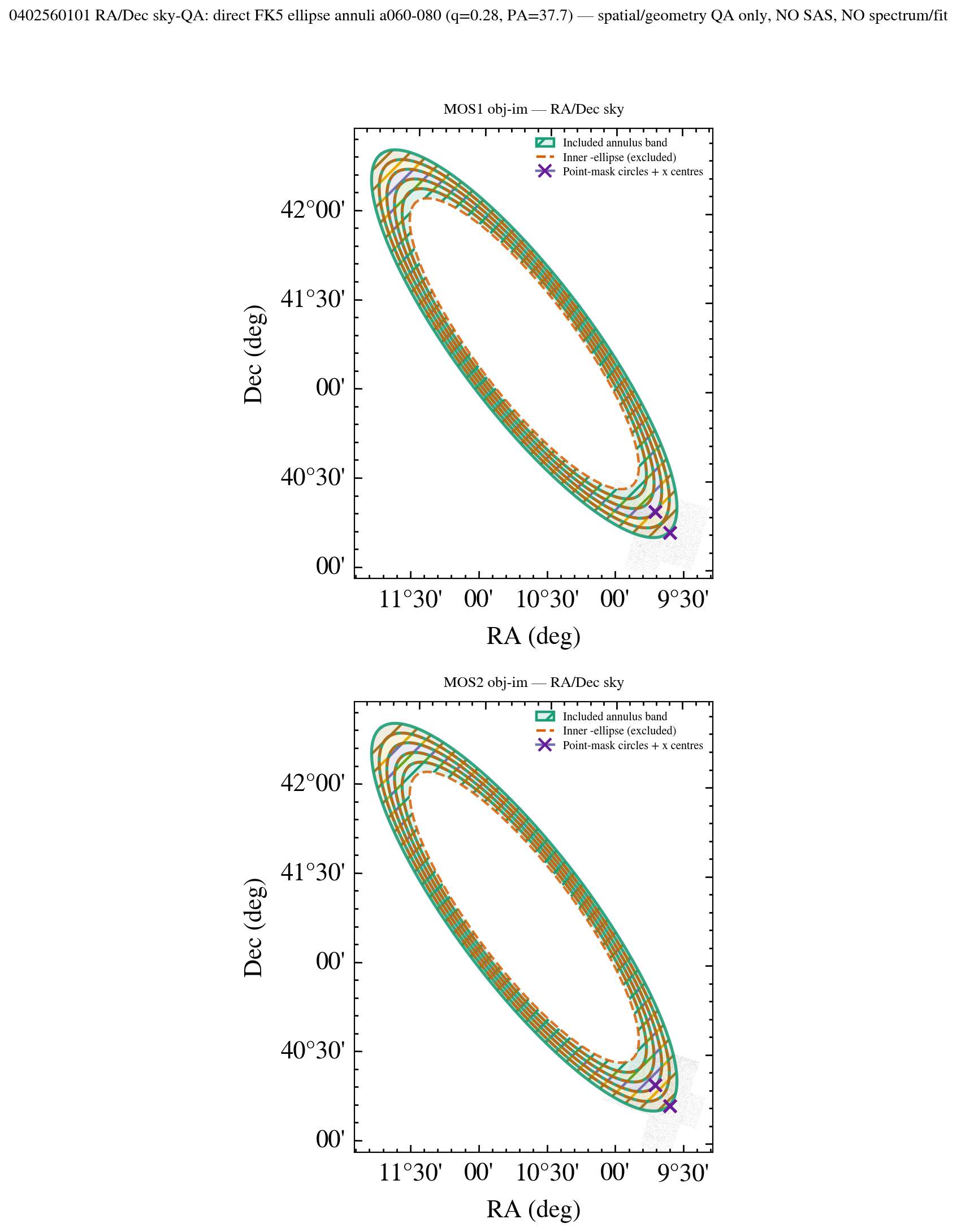

OBSID 0402560101 MOS1 and MOS2 RA/Dec geometry QA, one-column layout — 1-column public QA figure: direct FK5 native ellipses over MOS RA/Dec images and point-mask centres.

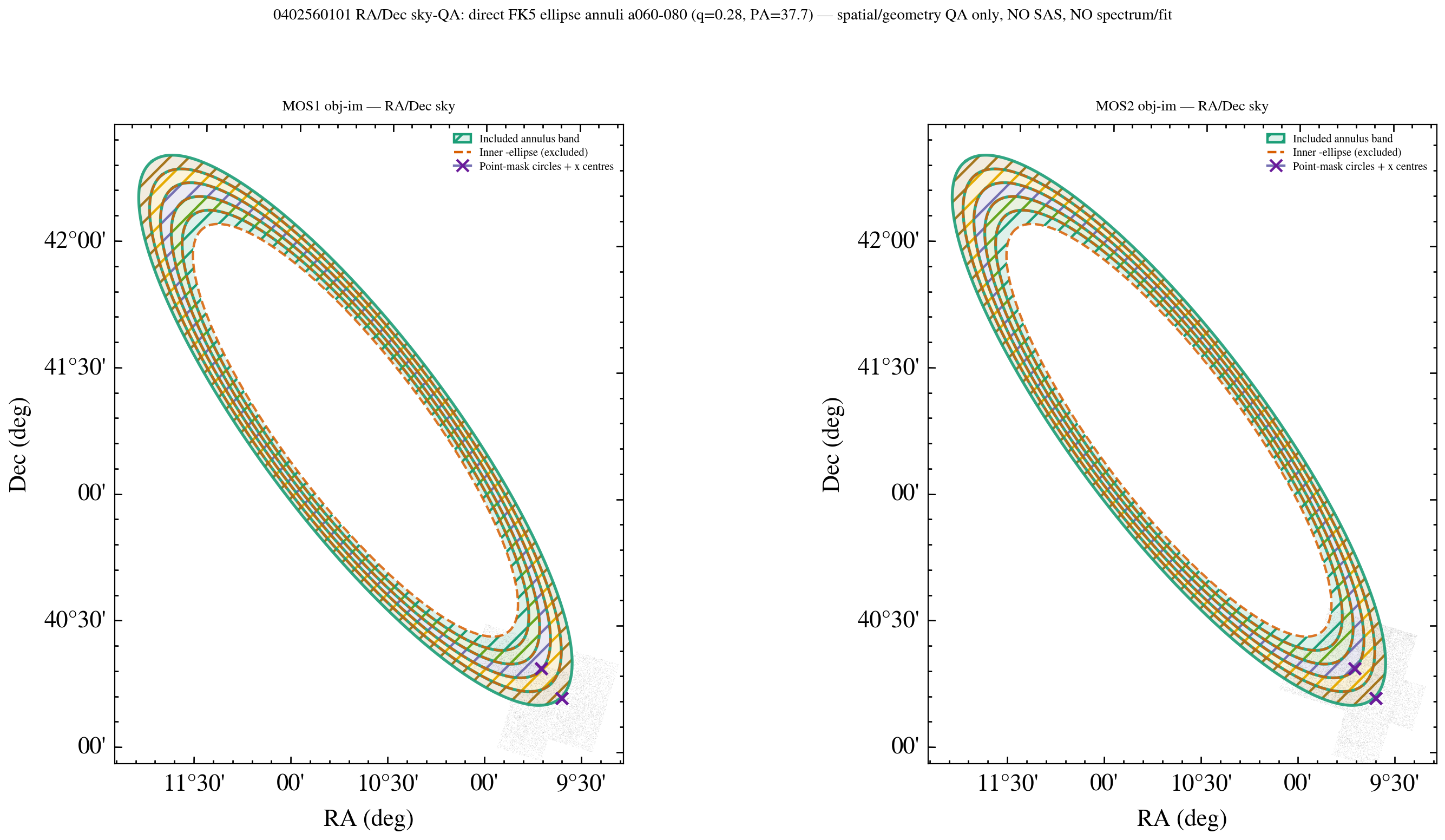

OBSID 0402560101 MOS1 and MOS2 RA/Dec geometry QA, two-column layout — 2-column public QA figure: same approved geometry with wider layout for visual inspection.

hatch included annulus：带 hatch 的区域是本 annulus 的 included sky area。 orange dashed inner exclusion：橙色虚线表示 inner exclusion。 purple circles/x mask centres：紫色圆/叉为 point-source mask centres。 MOS1/MOS2 camera-native RA/Dec panels：每台相机在自身 RA/Dec WCS 面板中显示。

注意：FOV does not contain full 60–80 arcmin ellipses；这些面板只用于检查影像覆盖处的几何投影，only image-overlapping parts visible。

公开下载 / Public downloads

提供五个 canonical direct FK5 DS9 region 文件（文本逐字复制）以及一个 public-sanitized manifest。公开 JSON 只含安全相对文件名/ basename、hash、geometry、scope、FK5 WCS metadata、required runtime versions 与 source-manifest SHA。

Downloads include five canonical direct FK5 DS9 region files copied verbatim and a public-sanitized manifest with strict safe fields only.

Direct FK5 region files

Sanitized public manifest

public_manifest.json

发布记录 / Release record

标准目标 URL：https://m31hotism-04025601-native-ellipse-radec-qa.pages.dev/。本构建器只生成本地静态 site，不执行发布。

Canonical target URL: https://m31hotism-04025601-native-ellipse-radec-qa.pages.dev/. This builder only creates the local static site and does not publish it.

闭合 manifest：report_manifest.json
